Sekonic C-7000 SpectroMaster

£1,899.99

  • Able to Measure LED, HMI, Fluorescent, Flash, and Natural Light
  • Handheld and Portable for Ease of Use
  • Ideal for Measuring Light in Industrial Environments

1 in stock

Add to Cart

Sekonic C-7000 SpectroMaster
Sekonic C-7000 SpectroMaster £1,899.99
Add to wishlist
Compare

Free UK shipping on all orders over £50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

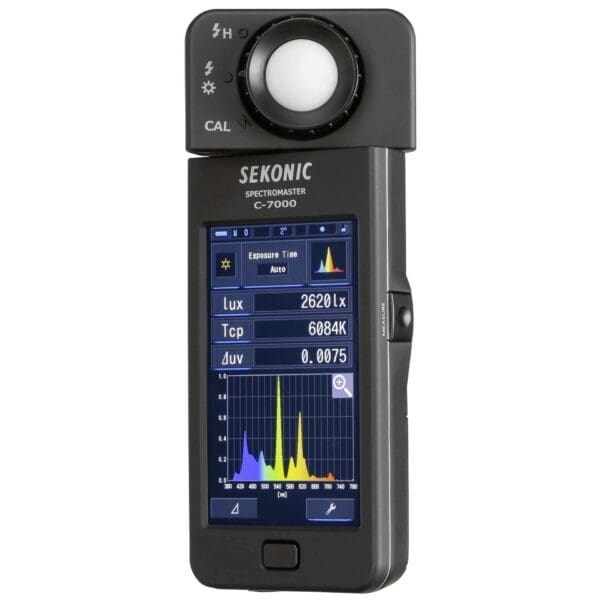

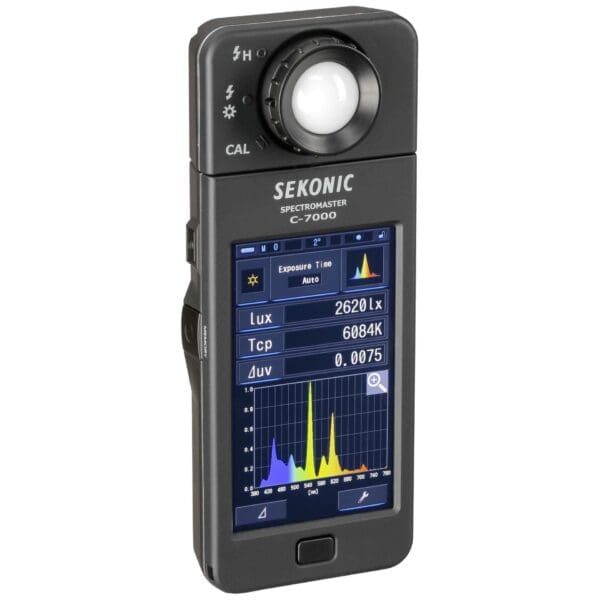

The Sekonic C-7000 SpectroMaster is a portable digital exposure meter, specially designed for industrial use. It is an advanced light meter capable of reading all light sources, whether it’s an LED flash, bulb, HMI, fluorescent light or natural light spectrum. Here you can enjoy a professional lecture from nine different display modes, from the large 4.3 inch color display. The Sekonic C-7000 SpectroMaster has a very impressive accuracy and response specs and a wide range of values in all modes. The Sekonic CMOS image sensor with linear design and the large color touch screen make possible that the C-7000 accurately describes measurements.

The C-7000 Utility software (only Windows version available) shows stored data in different ways in which spectral data are observed in 1nm steps (nanometer) in CSV format. The C-7000 is an important measuring instrument for quality control in lamp production, medical facilities, education / office health and safety standards, agricultural lighting / design and many more industrial applications.

Features of the Sekonic C-7000 SpectroMaster

  • Designed for industrial applications
  • Reads Photosynthetic Photon Flux Density
  • 4.3 inch color touch screen
  • Measures all forms of continuous light
  • Measures Flash
  • Multiple Informative screens
  • CMOS Linear Image Sensor
  • Computer Utility Available

In the Box

  • Sekonic C-7000 SpectroMaster
  • Color Meter
  • CD-ROM with Operating Manual and C-7000 Series Utility

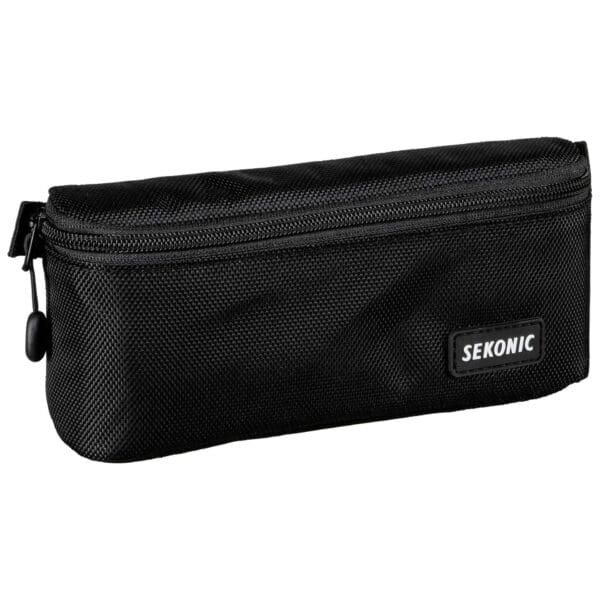

  • Soft Case storage pouch
  • Carrying Cord

Additional information

Specifications

Illuminance Meter Class:
* Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”
* DIN 5032 Part 7 Class C
– Sensor: CMOS linear image sensor
– Spectral Wavelength Range: 380nm to 780nm
– Output Wavelength Pitch: 1nm (Requires the C-7000 Utility to output memorized data)
– Spectral Bandwidth: approx. 11 nm (half bandwidth)

Measuring Range:
– Ambient light: 1 to 200,000lx (= 0.1 to 18,600fc), 1,563 to 100,000K (more than 5lx required)
– Flash light: 20 to 20,500lx • s (= 1.86 to 1,900fc • s), 1,563 to 100,000K
– Accuracy (Standard Illuminant A): Illuminance: ±5% + 1digit (1 to 3,000lx), x,y: 0.003 (Standard Illuminant A, 800lx)
– Repeatability (Standard Illuminant A):
– Illuminance: 1%+1 digit (30 to 200,000lx), 5%+1 digit (1 to 29.9lx)
– x,y: 0.001 (500 to 200,000lx)
– x,y: 0.002 (100 to 499lx)
– x,y: 0.004 (30 to 99.9lx)
– x,y: 0.008 (5 to 29.9lx)
– Visible-region Relative Spectral Response Characteristics (f1’): 9% or less
– Cosine Response (f2): 6% or less
– Temperature Characteristic: Illuminance: ±5% of indicated value, x,y: ±0.006 (Standard Illuminant A, 1000lx)
– Humidity Characteristic: Illuminance: ±3% of indicated value, x,y: ±0.006 (Standard Illuminant A, 1000lx)
– Power Source: AA (1.5V) x 2 pcs, USB bus power
– Measurement Time:
– Ambient: Auto – Max.: 15 sec., Min.: 0.5 sec.
– Ambient : Manual – 0.1s, 1sec.
– Flash:1 to 1/500 sec. (in 1 step)
– Measuring Modes: Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode
– Other Functions: Up to 999 memory, Preset function, Auto power off, Auto Dimmer, 2 or 10 deg. Filed of View Setting
– Display languages: English, Japanese, Chinese (Simplified) – factory preset, user cannot change
– Interface: USB 2.0
– Operating Temperature: -10 to 40 deg. C
– Storage Temperature: -10 to 60 deg. C
– Dimensions: 73mm (w) × 183mm (h) × 27mm (d) = 2.9” (w) x 7.2” (h) x 1.1” (d) (excluding protruding part
– Weight: 230g = 8.11oz. (without batteries)
