ULTRA EFFICIENT

CV Series CV550 is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.

CONTINUOUS, RELIABLE OUTPUT

Like all CORSAIR power supplies, the CV Series CV550 does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

LOW-NOISE OPERATION

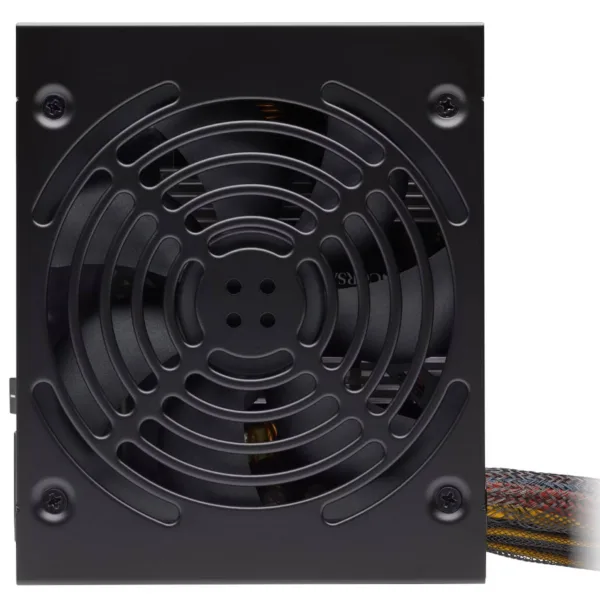

A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

COMPACT DESIGN

CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.

STEALTH MODE

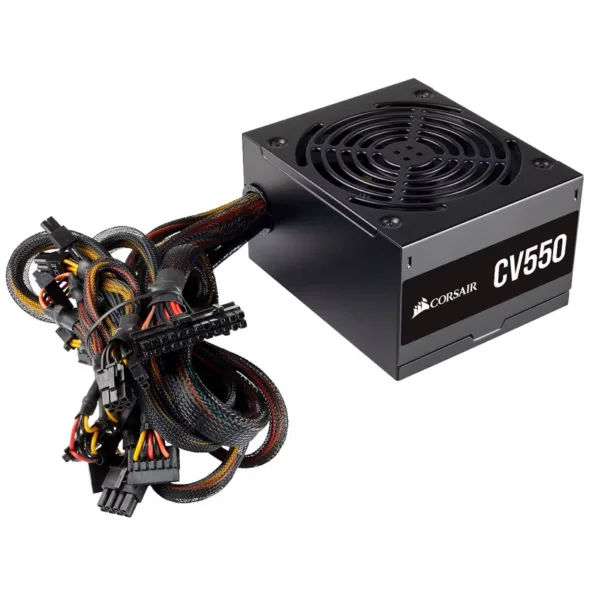

Black sleeved cables and a black powder-coated casing seamlessly fits your PC’s style.

GUARANTEED RELIABILITY

Three-year warranty backed by the CORSAIR global technical support team.

CV550 POWER TABLE

MODELRPS0127
PART NO.CP-9020210
AC Input Rating
AC INPUT100-240V
INPUT CURRENT10A-5A
FREQUENCY47~63Hz
Max LoadMax Output
+3.3V24A120W
+5V20A
+12V44A528W
-12V0.3A3.6W
+5VSB3A15W
TOTAL POWER550W
