| Lens Mount |
Canon EF-S |
| Camera Format |
APS-C (1.6x Crop Factor) |
| Pixels |
Actual: 25.8 Megapixel
Effective: 24.1 Megapixel |
| Max Resolution |
6000 x 4000 |
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9 |
| Sensor Type / Size |
CMOS |
| File Formats |
Still Images: JPEG, RAW
Movies: MP4
Audio: AAC |
| Bit Depth |
14-Bit |
| Memory Card Type |
SD
SDHC
SDXC (UHS-I) |
| Image Stabilisation |
Digital, 5-Axis (Video Only) |
| Battery |
1x LP-E17 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1040 mAh (Approx. 1630 shots) |
| Operating Temperature |
0 to 40°C |
| Self Timer |
2, 10 Seconds |
| Interval Recording |
Yes |
| Connectivity |
3.5mm Microphone, HDMI C (Mini), Micro-B (USB 2.0) |
| Wireless |
Wi-Fi
Bluetooth |
| Built-in Flash |
Yes |
| Max Sync Speed |
1 / 200 Second |
| Flash Compensation |
-2 EV to +2 EV (in 1/3,1/2 EV steps) |
| Dedicated Flash System |
eTTL |
| External Flash Connection |
Hot Shoe |
| Video Recording |
Yes, NTSC/PAL |
| Recording Limit |
Up to 29 Minutes, 59 Seconds |
| ISO Sensitivity |
100 to 12800 |
| Video Format |
MP4/H.264
UHD 4K (3840 x 2160) at 23.976p [120 Mb/s]
Full HD (1920 x 1080) at 25/29.97p/50p/59.94p [12 to 60 to Mb/s]
HD (1280 x 720) at 50p/59.94p [26 Mb/s]External Recording:
4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/29.97p
Full HD (1920 x 1080) at 59.94i/59.94p
SD (640 x 480) at 59.94p |
| Audio Recording |
Built-In Microphone (Stereo)
External Microphone Input (Stereo) |
| Focus Type |
Auto and Manual Focus |
| Focus Modes |
Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
| Autofocus Points |
Phase Detection: 9 (1 Cross-Type) |
| Autofocus Sensitivity |
-0.5 to +18 EV |
| Viewfinder Type |
Optical (Pentamirror) |
| Viewfinder Coverage |
95% |
| Viewfinder Eyepoint |
19mm |
| Viewfinder Magnification |
Approx. 0.87x |
| Diopter Adjustment |
-3 to +1 |
| Display Screen |
3″ Rear 1,040,000-Dot Articulating Touchscreen LCD |
| ISO Sensitivity |
Auto, 100 to 256000 (Extended Mode: 100 to 51200) |
| Shutter |
Mechanical
1/4000 to 30 sec, Bulb Mode |
| Metering Modes |
Center-weighted Average, Evaluative, Partial, Spot |
| Exposure |
Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Metering Range: 1 to 20.0 EV
Compensation: -5 to +5 EV (in 1/3, 1/2 EV Steps) |
| White Balance Modes |
Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Buffer/Continous Shooting |
Up to 5 fps at 24.1 MP for unlimited exposures in JPEG format
Up to 5 fps at 24.1 MP for up to 10 exposures in RAW format |
| Dimensions (W x H x D) |
122.4 x 92.6 x 69.8 mm |
| Weight |
449 g |

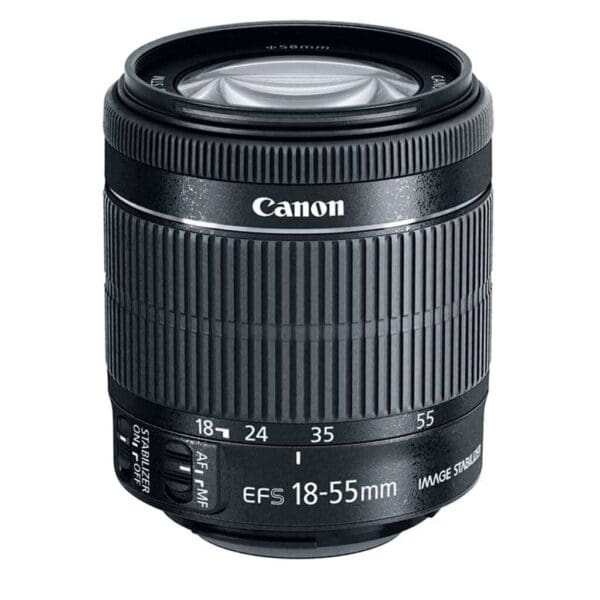

Canon EF-S 18-55mm F/4-5.6 IS STM Specs
|
| Focal Length |
18 to 55mm (35mm Equivalent Focal Length: 28.8 to 88mm) |
| Maximum Aperture |
f/4 to 5.6 |
| Minimum Aperture |
f/22 to 32 |
| Lens Mount |
Canon EF-S |
| Format Compatibility |
APS-C |
| Angle of View |
74° 20′ to 27° 50′ |
| Minimum Focus Distance |
9.84″ / 25 cm |
| Maximum Magnification |
0.25x |
| Optical Design |
12 Elements in 10 Groups |
| Diaphragm Blades |
7, Rounded |
| Focus Type |
Autofocus |
| Image Stabilization |
Yes |
| Filter Size |
58 mm (Front) |
| Dimensions (ø x L) |
2.62 x 2.43″ / 66.5 x 61.8 mm |
| Weight |
7.6 oz / 215 g |
